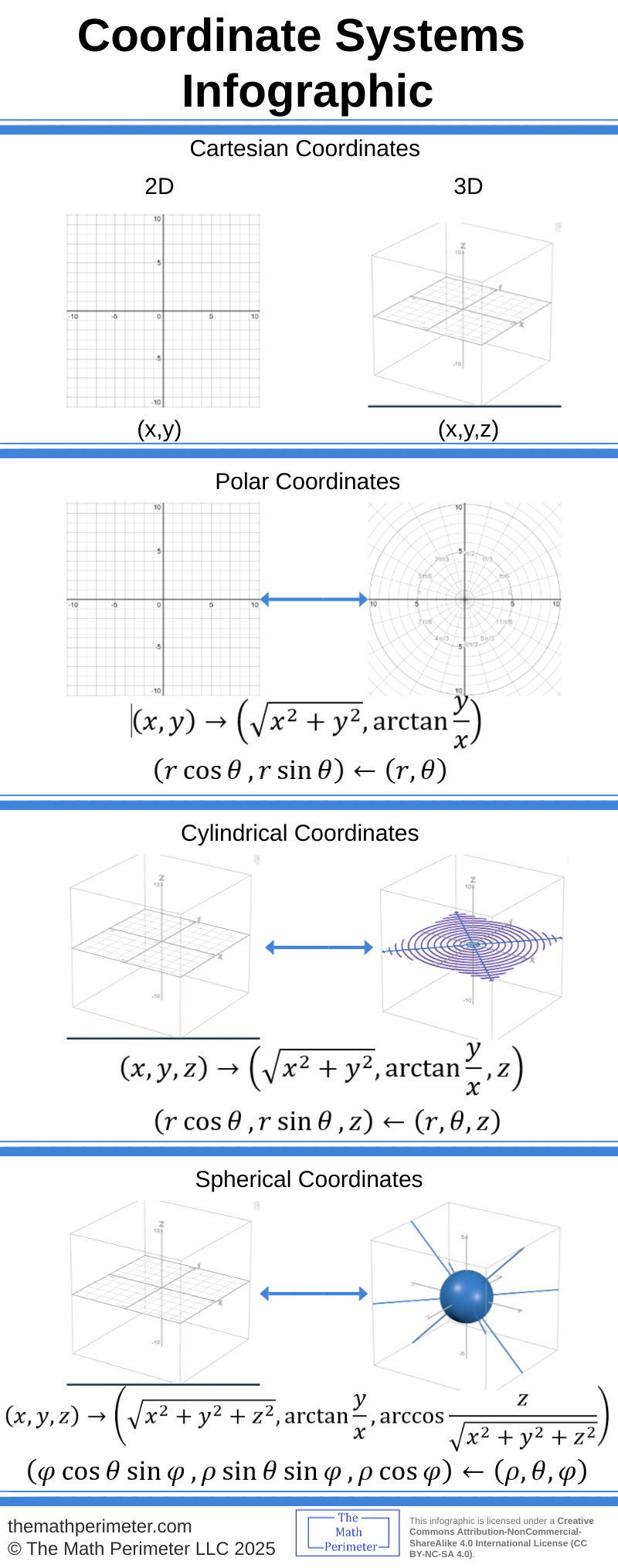

Coordinate Systems Infographic

Related Article:

A Complete Beginner’s Guide to Polar, Cylindrical, and Spherical Coordinates in Calculus

Notes:

To convert from cylindrical to spherical coordinates, first convert to Cartesian coordinates, then to spherical coordinates.

To convert from spherical to cylindrical coordinates, first convert to Cartesian coordinates, then to cylindrical coordinates.

License:

This coordinate systems infographic is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike license. That means you’re free to share, modify, and distribute the infographic if you provide proper attribution, don’t use it for commercial purposes, and derivative works are licensed under compatible terms.

If your intended use falls outside these rights, please contact me at
legal@themathperimeter.com. We can make arrangements for proper licensing.
